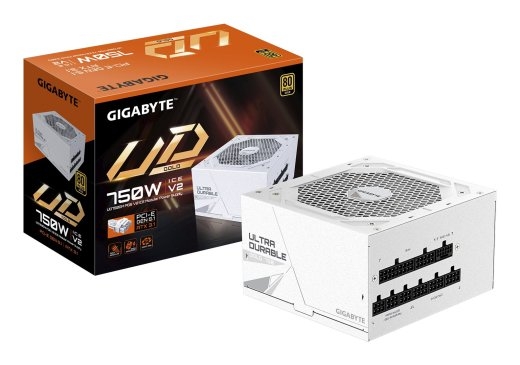

GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, Plug

Product colour: White On/off switch: Yes Number of fans: 1 fan(s) Fan diameter: 12 cm Cooling type: Active Max output current (-12V): 0.3 A Combined power (+12V): 750 W AC input frequency: 50/60 Hz Max output current (+5Vsb): 3 A Combined power (+5V): 105 W Max output current (+3.3V): 20 A Power Factor Correction (PFC) type: Active Max output current (+12V): 70.8 A Max output current (+5V): 20 A Combined power (-12V): 3.6 W Combined power (+3.3V): 105 W Efficiency: 90% AC input voltage: 100 - 240 V Hold time: 16 ms Total power: 750 W Combined power (+5Vsb): 15 W Power factor: 0.9 Input current: 15 - 6.5 A Power protection features: OCP Width: 150 mm Height: 86 mm Depth: 140 mm ATX version: 3.1 Mean time between failures (MTBF): 100000 h 80 PLUS certification: 80 PLUS Gold Power supply unit (PSU) form factor: ATX Purpose: PC PCI Express connector: Yes Number of SATA power connectors: 8 CPU power connector (4+4 pin): Yes Cabling type: Fully-Modular PCI Express power connectors (12+4 pin) cable length: 700 mm PCI Express power connectors (12+4 pin): 1 Number of EPS connectors: 2 PCI Express power connectors (6+2 pin): 4
